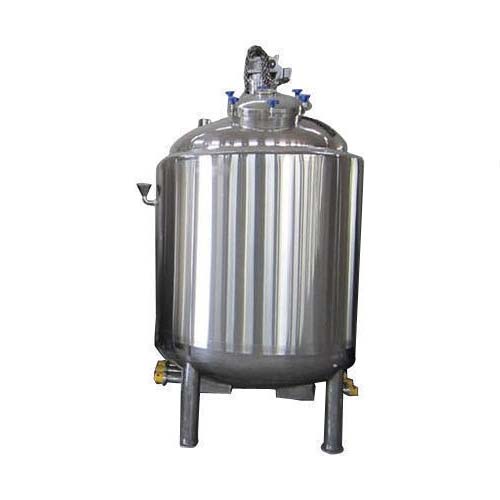

Storage Tanks

SS Tank in cylindrical & vertical shape duly constructed with SS 316Q 14 swg thickness material. The tank duly argon is welded & mounted on rigid SS pipe legs of SS 304Q 4” dia Pipe.

Shell made out of SS 316Q, height duly rolled & made out of SS 316 Q 14 swg thickness material.

Bottom dish made out of SS 316 Q material 14 swg duly got dish end with depth of 150mm

SS ring reinforced on the mouth of the tank made out of SS rigid rod pipe of 3/4” dia X 14swg

SS flat lid provided on the top of the tank with lifting handle. SS flat lid made out of SS 316Q 14 swg material.

SS pipe legs 4 nos made out of SS 304 Q 4” dia pipe with mounting pad of SS square plate. Side handle 2 no provided for lifting the tank. Tank duly mirror polished from inside & outside.
