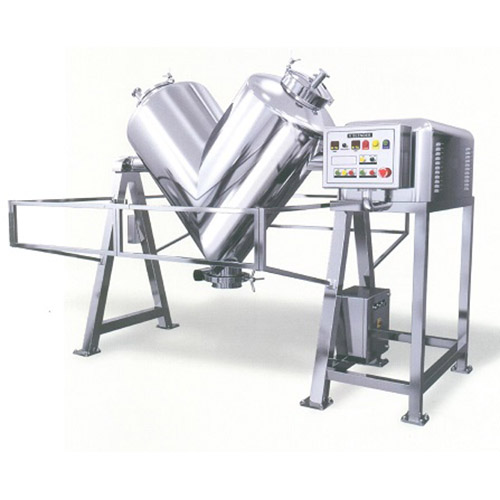

"V" Blender

V' Blender consists of two large diameter pipe cut to 80degree angle & welded together to form V shape body.

Inlets are located on the top of the body where as the outlet is at the bottom of V' point where there is transition from elliptical to cylindrical discharge port.

In operation material is loaded to a fill level of 50 to 60% of the blender capacity.

The unit tumbles end over end but the mixing action is different because of the body shape.

As the body tumbles the material continuously splits & recombines with the mixing occurring as the material free falls inside the body.

Mixing is achieved ind to 15 minutes with better homogeneity.

Capacity Available :

5Ltrs. To 75Ltrs.
